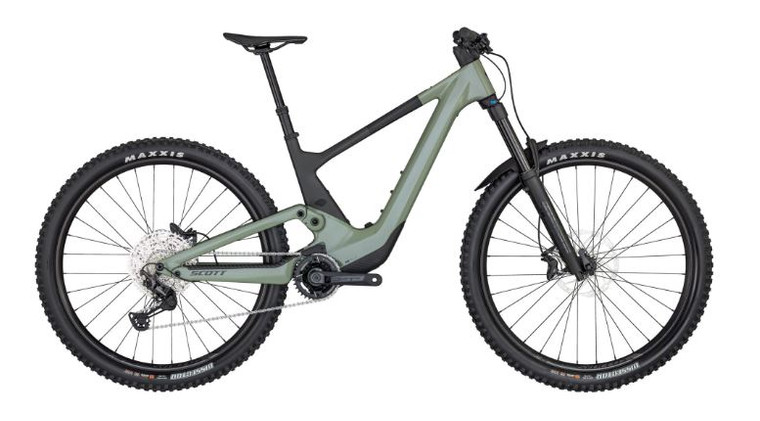

SCOTT VOLTAGE eRIDE 910

Imagine giving the world's best trail bike a secret weapon. With the Voltage eRIDE, that's just what we did. Designed for existing MTB enthusiasts who crave an agile, lightweight and capable trail bike with the addition of a compact and quiet motor, the all-new Voltage eRIDE overdelivers trail after trail... after trail.

KEY FEATURES

• Voltage eRIDE Carbon HMF Frame
• FOX 36 Float Rhythm 160mm Fork
• FOX NUDE 6T EVOL, TwinLoc, 155mm
• Shimano XT-Deore 12Sp
• Shimano Deore 4 Piston Disc Brakes
• Maxxis Foldable Tires

• FRAME

  Carbon HMF
  Integrated Suspension Technology
  Virtual 4 Link kinematic / Adjustable head angle
  Syncros Cable Integration System
  TQ HPR50 / UDH Interface / 12x148mm with 55mm Chainline
  Range Extender Ready

• TRAVEL

  Front: 160mm / Rear: 155mm

• FORK

  FOX 36 Float Rhythm Air Grip
  3 modes / 15x110mm QR axle / tapered steerer
  44mm offset / Reb. Adj. / Lockout / 160mm travel

• REAR SHOCK

  FOX NUDE 6T EVOL Trunnion
  SCOTT custom w. travel / geo adj.
  3 modes: Lockout-Traction Control-Descend
  Low Speed Adj. / Custom large Air volume / Reb. Adj.
  Travel 155-100-Lockout / T185X55mm

• REMOTE SYSTEM

  SCOTT TwinLoc 2 Technology
  Suspension & Dropper Remote
  3 Suspension modes

• DRIVE UNIT

  TQ HPR50 Mid Motor drive 50Nm max Torque / EU: 25kmh / US: 20mph

• BATTERY

  TQ Internal 360Wh

• DISPLAY

  TQ HPR
  Bluetooth / ANT+ / Dedicated Smartphone app

• CHARGER

  TQ 100-240V-4A

• REAR DERAILLEUR

  Shimano XT RD-M8100 SGS
  Shadow Plus / 12 Speed

• SHIFTERS

  Shimano Deore SL-M6100-IR / Rapidfire Plus
  I-spec EV clamp

• CRANKSET

  FSA Alloy crankset / 175mm / 34T

• CHAINGUIDE

  e*thirteen / e*spec Slider

• CHAINRING

  Scott custom spider / FSA 12Speed 34T chainring

• CHAIN

  Shimano CN-M6100

• CASSETTE

  Shimano CS-M6100 / 10-51 T

• BRAKES

  Shimano Deore M6120 4-Piston Disc

• ROTOR

  Shimano SM-RT64 CL / F&R 203mm

• HANDLEBAR

  Syncros Hixon 1.5 Alloy 7050
  Size S & M 15mm rise / Size L & XL 25mm rise
  back sweep 8° / 780mm
  Syncros Endurance lock-on grips

• H'STEM

  Syncros AM 1.5
  Syncros Cable Integration System
  4° rise / 7050 Alloy / 31.8mm / 1 1/8"

• SEATPOST

  Syncros Duncan Dropper Post 1.5S / Travel Adjust / 31.6mm
  S size 140mm / M size 180mm / L & XL size 210mm

• SEAT

  Syncros Tofino 1.5 Regular
  Titanium rails

• HEADSET

  Syncros - Acros Angle adjust & Cable Routing HS System
  Stainless / +-0.6° head angle adjustment
  ZS56/28.6 – ZS56/40 MTB

• FRONT HUB

  Formula CL-811 / 15x110mm

• REAR HUB

  Formula CL-148M / 12x148mm

• SPOKES

  Stainless Black 15G / 1.8mm

• RIMS

  Syncros X-30S / 32H / 30mm / Sleeve Joint
  Tubeless ready

• FRONT TIRE

  Maxxis Dissector / 2.6" / 60TPI Foldable
  Tubeless Ready / EXO 3C maxx Terra

• REAR TIRE

  Maxxis Dissector / 2.6" / 60TPI Foldable
  Tubeless Ready / EXO 3C maxx Terra
